Product Description

Scenic Spot Observation Telescope ​ 40X100 Coin-operated telescope

The YJT-3C coin-operated telescope is designed for the operation of scenic spots and fully meets the needs of tourists for long-distance viewing, and is suitable for regular use by non-professional tourists. The coin-operated telescope YJT-3C is engineered in different climatic environments and is able to adapt to changing environments. YJ-3C is committed to creating more value for stable operation with its simple operation performance, excellent optical performance, electrical performance, strong structural performance, novel design, and high cost performance advantage.

Advantages

Simple operation
For non-professional users: operators can easily install, set up the telescope, and use the telescope to create benefits; Visitors just put the designated coins and easily use binoculars to look at the distant scenery.

Excellent optics
It uses the latest optical imaging system, professional computer optics software to optimize the imaging quality, so that visitors can get through to the telescope in different light for a clear and bright visual experience.

Stable electric energy
Precision integrated circuit timing module, low power design, and the latest design of the entire waterproof design of the main control circuit system ensure the stability of the electrical system and greatly reduce maintenance costs.

Solid construction
The telescope's main engine and column, chassis parts are all made of metal, greatly adapted to different environments, strong and durable. Unlimited 360 degree rotating mechanism for a panoramic search experience.

Novel appearance
Beautiful, eye-catching, novel patented design, fashion streamline modeling, attract more attention to visitors, for you to create more profits.

Main parameter

Optical property
Type	Monoculars/binoculars
Magnification	25x, 40x
Exit pupil diameter	Φ4mm
Exit pupil distance	14mm
Field of view	2°30 '(45m/1000m)
Resolution	2.4"
Objective lens diameter	Φ100mm
Eye distance	Not adjustable, 63mm
Diopter	Fixed focus (0.75- infinite)
Electrical equipment specification
Power Supply	DC4.5V (3 No.5 dry batteries)
Continuous standby time	12 months
Continuous use time	3 months (the length of continuous use time depends on the battery capacity and frequency used.)
Control time adjustment	5S-9995s continuous adjustment. The factory default is Control time adjustment is 60 seconds
Operating temperature	-15 ℃ ~ + 50 ℃
Mechanical property
Horizontal rotation	Infinitely free rotation
Elevation	± 30°
Waterproof	Outdoor waterproof
Overall dimensions (binocular body)	620 mm (L) ×360 mm (W) ×260 mm (H)
Total height	1400mm
Total net weight	62kg
Box size Weight	Main machine: 720×400×460 (27 kg) Chassis: 550×550×100 (21 kg) Column: 1200×260×260 (18 kg)



Specifications︰ Long exit pupil distance telescope 40X100

Advantages︰ Simple operation
Excellent optics
Stable electric energy
Solid construction
Novel appearance

Export Markets︰ All countries

Payment Details︰ TT

Min Order︰ 1

Ship Date︰ 15D

Standard Met︰ ISO

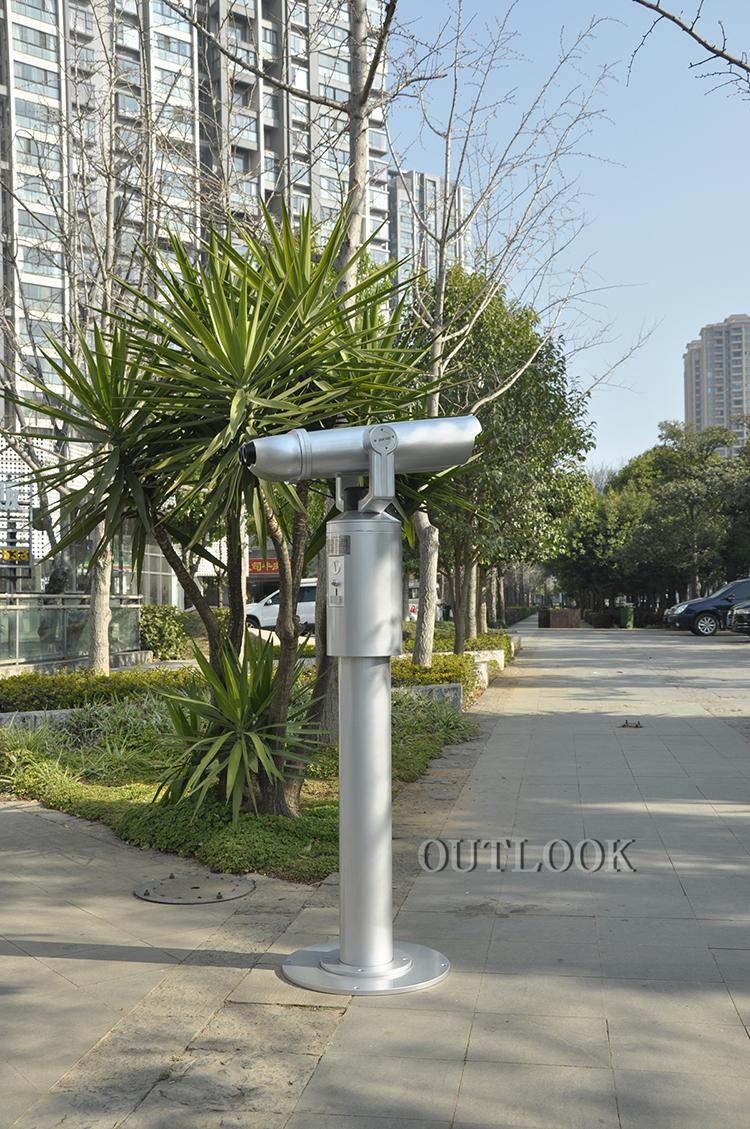

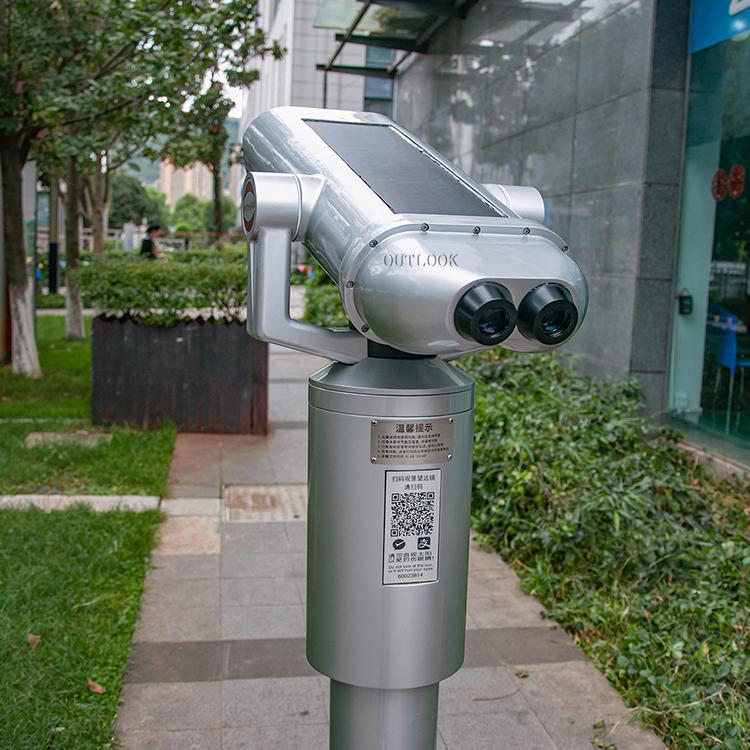

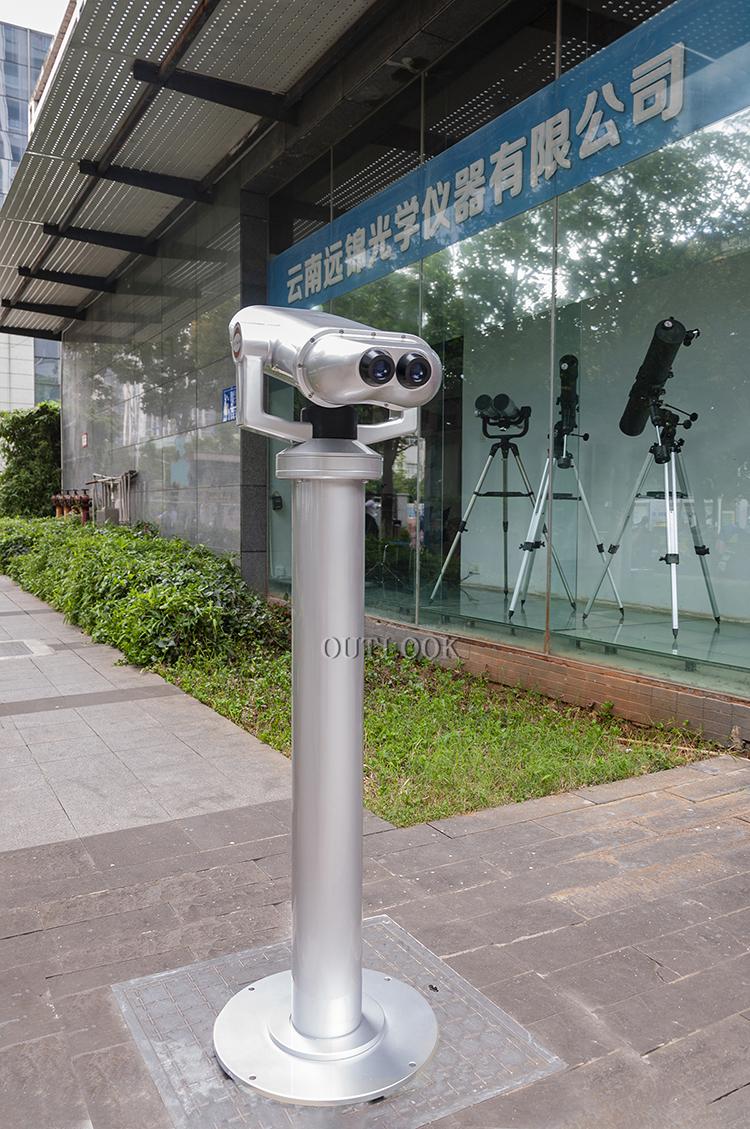

Product Image
