Product Description

Night vision goggles are utilized to observe the surrounding environment and nearby targets with an exceptionally wide field of view during low visibility or at night. They are also used for equipment operation, command operations, and various activities such as night patrols, rescue missions, covert reconnaissance, and map viewing. These goggles can be worn on the head or held by hand, making them versatile for different settings and purposes.

This product functions well under typical low-light weather conditions and remains observable in extreme weather conditions like smog, heavy rain, blizzards, sandstorms, etc. However, certain indicators, like recognition distance, may decrease in such conditions.

Technical Specifications with 3X Extender

• Effective distance: visibility 8 km, illumination 1×10-3 lx, side recognition distance of medium-sized vehicles is not less than 400 m.
• Magnification: 3x.
• Focusing range: 10 m～∞.
• Handheld observation weight: not more than 660 g.

Technical Specifications with 5X Extender

• Effective distance: visibility 8 km, illumination 1×10^-3 lx, side recognition distance of medium-sized vehicles is not less than 800 m.
• Magnification: 5x.
• Focusing range: 10 m～∞.
• Handheld observation weight: not more than 820 g.

Performance parameters:

Name	Binocular monocular low-light night vision device
Power supply	One AA battery
Main unit weight	370g (including objective lens, eye mask, battery)
Operating temperature	-40℃～+50℃
Storage temperature	-50℃～+60℃
Magnification	1×
Field of view	50°
Focusing range	250mm～∞
Exit pupil diameter	7mm
Exit pupil distance	18mm
Diopter adjustment range	-4～+2 vision
Image intensifier tube	2 generations +
Action distance	Visibility 8Km, illumination 1×10-3lx, side recognition distance of medium-sized vehicles
Continuous operation	Not less than 150m;
Protection level	Not less than 30 hours

Specifications︰ YJ-LUCIE

Advantages︰ Good optical performance
Handhold and head mounted
3X 5X Extender

Export Markets︰ All countries

Payment Details︰ TT

Min Order︰ 1

Ship Date︰ 15D

Standard Met︰ ISO

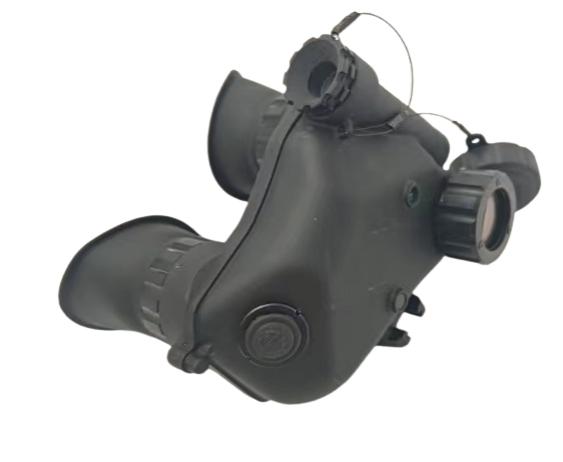

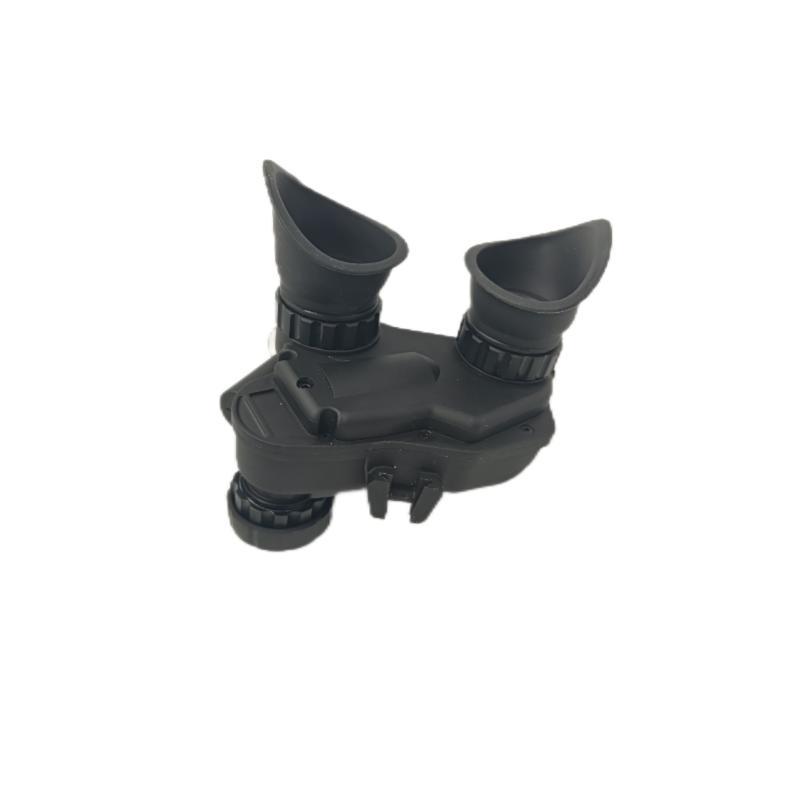

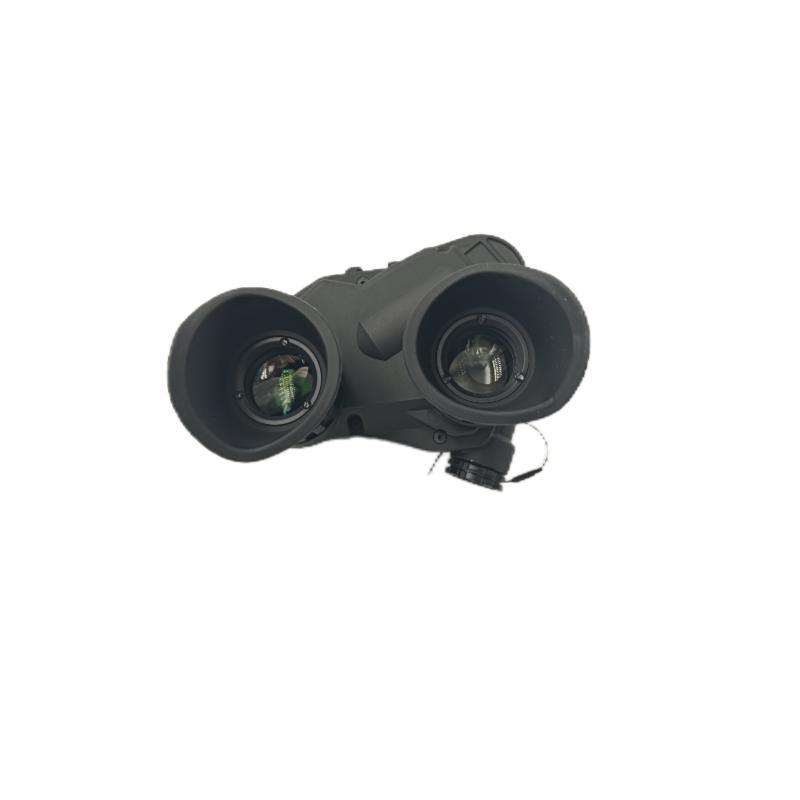

Product Image
