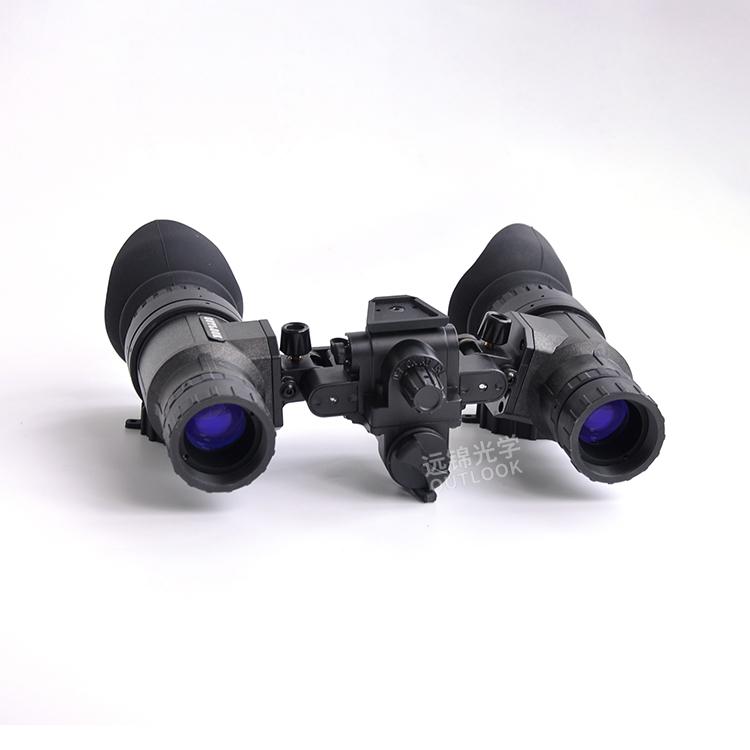

PVS3114 binocular dual tube low light night vision device
The PVS3114 binocular dual tube low light night vision device has the characteristics of small size, light weight, and easy portability and operation. This low light night vision device is easy to operate and has clear image quality. It is suitable for equipping individual helmets for target observation, reconnaissance, etc. The low light night vision device can observe enemy situations at night and accurately and effectively attack enemy targets. In addition, the low light night vision device can also be used for vehicle night driving, land and aircraft driving, etc. Therefore, the low light night vision device is also known as a night vision telescope.
Main technical parameters
|
Model
|
YJPVS3114
|
|
Type
|
Dual tube NVGs
|
|
Power on/off
|
Power on/on by Flip up
|
|
Power supply
|
1pc CR123
|
|
Voltage
|
1.4～4.2V
|
|
Installation
|
Wilcox/L4G24 mounts
|
|
Control
|
OFF/ON/AUTO/IR
|
|
Power Consumption
|
<0.15W
|
|
Duration
|
260Hrs
|
|
Magnification
|
1X ±5%
|
|
FOV
|
40°
|
|
Optical Axis Parallelism
|
<0.3
|
|
IIT
|
37mm GEN2
|
|
Distortion
|
3% Max
|
|
Focus Range
|
250mm ~o
|
|
Eye Relief
|
25mm
|
|
Exit Pupillary diameter
|
14mm
|
|
Diopter
|
-4 ～ +2
|
|
Interpupillary Adjustment
|
54-80mm
|
|
Lens system
|
1.2
|
|
IP Rating
|
IP67 |
|
Working Temp
|
-40 - +55℃
|
|
Dimension(eyeguard excluded)
|
117x106x92mm
|
|
Weight(battery included)
|
540g
|
